Kopp 1011 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

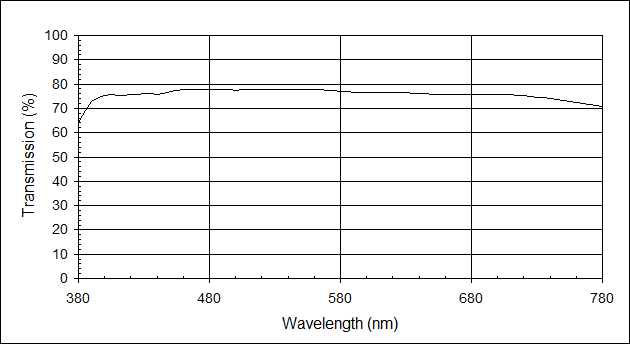

Note: Graph and tabular
data at 1.00 mm |
|
|
|
|
|
|
|
|
|
|
|
|
Filter Specifications |
|
|
|
|
|
|
|
|
|
Transmission at 405 nm
must be 76 ± 2% |
|
|
|
|
|
|
Transmission at 545 nm
must be 77 ± 2% |
|
|
|
|
|
|
Transmission at 695 nm
must be 77 ± 2% |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Physical Properties |
|
|
|
Nominal Thickness Range |
|
1.00 mm |
|
|
Refractive Index |
|
|
nD = 1.50 |
|
|
Density |
|
|
2.31 g/cm3 |
|
|
Thermal Linear Expansion |
|
59E-7 /șC (30-300 șC) |
|
|
Strain Temperature |
|
|
514 șC |
|
|
Annealing Temperature |
|
|
530 șC |
|
|
Deformation Temperature |
|
566 șC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Kopp 1011 |
|
|
|
Wavelength |
Transmission |
Wavelength |
Transmission |
Wavelength |
Transmission |
|
|
(nm) |
(%) |
|
(nm) |
(%) |
|
(nm) |
(%) |
|
|
|
200 |
0.00 |
|
435 |
76.04 |
|
670 |
75.53 |
|
|
205 |
0.00 |
|
440 |
75.90 |
|
675 |
75.52 |
|
|
210 |
0.00 |
|
445 |
76.13 |
|
680 |
75.57 |
|
|
215 |
0.00 |
|
450 |
76.80 |
|
685 |
75.55 |
|
|
220 |
0.00 |
|
455 |
77.34 |
|
690 |
75.53 |
|
|
225 |
0.00 |
|
460 |
77.67 |
|
695 |
75.75 |
|
|
230 |
0.00 |
|
465 |
77.83 |
|
700 |
75.60 |
|
|
235 |
0.00 |
|
470 |
77.93 |
|
705 |
75.58 |
|
|
240 |
0.00 |
|
475 |
77.96 |
|
710 |
75.54 |
|
|
245 |
0.00 |
|
480 |
77.85 |
|
715 |
75.29 |
|
|
250 |
0.00 |
|
485 |
77.73 |
|
720 |
75.22 |
|
|
255 |
0.00 |
|
490 |
77.66 |
|
725 |
74.95 |
|
|
260 |
0.00 |
|
495 |
77.67 |
|
730 |
74.56 |
|
|
265 |
0.00 |
|
500 |
77.56 |
|
735 |
74.34 |
|
|
270 |
0.00 |
|
505 |
77.59 |
|
740 |
73.91 |
|
|
275 |
0.00 |
|
510 |
77.65 |
|
745 |
73.62 |
|
|
280 |
0.00 |
|
515 |
77.60 |
|
750 |
73.21 |
|
|
285 |
0.00 |
|
520 |
77.73 |
|
755 |
72.82 |
|
|
290 |
0.00 |
|
525 |
77.71 |
|
760 |
72.50 |
|
|
295 |
0.00 |
|
530 |
77.78 |
|
765 |
72.05 |
|
|
300 |
0.00 |
|
535 |
77.87 |
|
770 |
71.67 |
|
|
305 |
0.00 |
|
540 |
77.81 |
|
775 |
71.25 |
|
|
310 |
0.01 |
|
545 |
77.84 |
|
780 |
70.82 |
|
|
315 |
0.20 |
|
550 |
77.87 |
|
785 |
70.41 |
|
|
320 |
1.19 |
|
555 |
77.79 |
|
790 |
69.97 |
|
|
325 |
4.11 |
|
560 |
77.71 |
|
795 |
69.54 |
|
|
330 |
9.76 |
|
565 |
77.67 |
|
800 |
69.32 |
|
|
335 |
17.79 |
|
570 |
77.43 |
|
805 |
68.76 |
|
|
340 |
27.16 |
|
575 |
77.26 |
|
810 |
68.34 |
|
|
345 |
36.87 |
|
580 |
77.01 |
|
815 |
68.12 |
|
|
350 |
45.66 |
|
585 |
76.83 |
|
820 |
0.00 |
|
|
355 |
52.94 |
|
590 |
76.70 |
|
825 |
0.00 |
|
|
360 |
58.75 |
|
595 |
76.59 |
|
830 |
0.00 |
|
|
365 |
63.44 |
|
600 |
76.70 |
|
835 |
0.00 |
|
|
370 |
65.41 |
|
605 |
76.66 |
|
840 |
0.00 |
|
|
375 |
63.44 |
|
610 |
76.66 |
|
845 |
0.00 |
|
|
380 |
64.23 |
|
615 |
76.68 |
|
850 |
0.00 |
|
|
385 |
69.28 |
|
620 |
76.63 |
|
855 |
0.00 |
|
|
390 |
72.73 |
|
625 |
76.59 |
|
860 |
0.00 |
|
|
395 |
74.65 |
|
630 |
76.47 |
|
865 |
0.00 |
|
|
400 |
75.45 |
|
635 |
76.33 |
|
870 |
0.00 |
|
|
405 |
75.67 |
|
640 |
76.24 |
|
875 |
0.00 |
|
|
410 |
75.32 |
|
645 |
75.99 |
|
880 |
0.00 |
|
|
415 |
75.36 |
|
650 |
75.92 |
|
885 |
0.00 |
|
|
420 |
75.63 |
|
655 |
75.77 |
|
890 |
0.00 |
|
|
425 |
75.89 |
|
660 |
75.67 |
|
895 |
0.00 |
|
|
430 |
76.15 |
|
665 |
75.54 |
|
900 |
0.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
