Kopp 3482

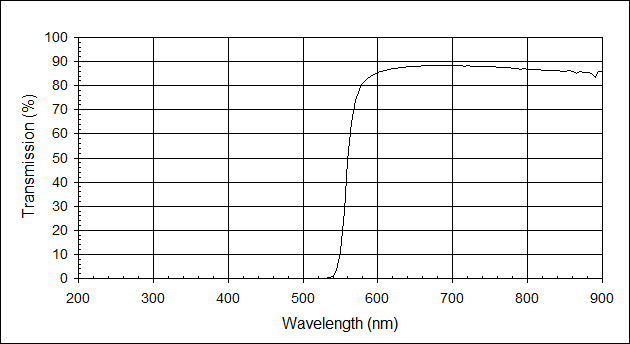

Note: Graph and tabular data at 3.00 mm
Filter Specifications
Transmission must be 37% between 544 nm and 567 nm (cut-off wavelength)
Transmission must be 80% from 597 nm to 750 nm
Transmission must be < 0.5% at wavelength shorter than 524 nm
Difference between 15% and 60% transmission must be < 15 nm
Physical Properties
Nominal Thickness Range 1.4 - 4.6 mm
Refractive Index nD = 1.49
Density 2.41 g/cm3
Thermal Linear Expansion 40E-7 /C (30-300 C)
Strain Temperature 438 C
Annealing Temperature 522 C
Deformation Temperature 714 C

    Kopp 3482
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 0.00 670 88.44
205 0.00 440 0.00 675 88.51
210 0.00 445 0.00 680 88.37
215 0.00 450 0.00 685 88.33
220 0.00 455 0.00 690 88.39
225 0.00 460 0.00 695 88.37
230 0.00 465 0.00 700 88.27
235 0.00 470 0.00 705 88.24
240 0.00 475 0.00 710 88.24
245 0.00 480 0.00 715 88.17
250 0.00 485 0.00 720 88.25
255 0.00 490 0.00 725 88.17
260 0.00 495 0.00 730 88.13
265 0.00 500 0.01 735 88.05
270 0.00 505 0.02 740 87.99
275 0.00 510 0.04 745 87.80
280 0.00 515 0.06 750 87.85
285 0.00 520 0.09 755 87.82
290 0.00 525 0.12 760 87.59
295 0.00 530 0.19 765 87.62
300 0.00 535 0.38 770 87.45
305 0.00 540 1.01 775 87.40
310 0.00 545 3.37 780 87.28
315 0.00 550 11.10 785 87.12
320 0.00 555 27.95 790 86.88
325 0.00 560 48.83 795 87.06
330 0.00 565 64.65 800 86.88
335 0.00 570 73.74 805 86.58
340 0.00 575 78.47 810 86.72
345 0.00 580 81.10 815 86.65
350 0.00 585 82.68 820 86.51
355 0.00 590 83.81 825 86.18
360 0.00 595 84.55 830 86.35
365 0.00 600 85.30 835 86.30
370 0.00 605 85.76 840 86.13
375 0.00 610 86.32 845 86.02
380 0.00 615 86.65 850 86.04
385 0.00 620 86.95 855 86.10
390 0.00 625 87.22 860 85.79
395 0.00 630 87.42 865 84.97
400 0.00 635 87.71 870 85.76
405 0.00 640 87.85 875 85.34
410 0.00 645 87.93 880 85.45
415 0.00 650 88.08 885 84.88
420 0.00 655 88.15 890 83.60
425 0.00 660 88.27 895 85.97
430 0.00 665 88.32 900 85.77
