Kopp 5030
Note: Graph and tabular data at 5.10 mm
Filter Specifications
Transmission at 514 must be 15 0.7%
The difference between 15% and 60% transmission must be 40 5 nm
Transmission at 514 nm must be equal to Transmission at 738 5 nm
Physical Properties
Nominal Thickness Range 4.4 - 5.6 mm
Refractive Index nD = 1.47
Density 2.30 g/cm3
Thermal Linear Expansion 92E-7 /C (30-300 C)
Strain Temperature 372 C
Annealing Temperature 411 C
Deformation Temperature 660 C


    Kopp 5030

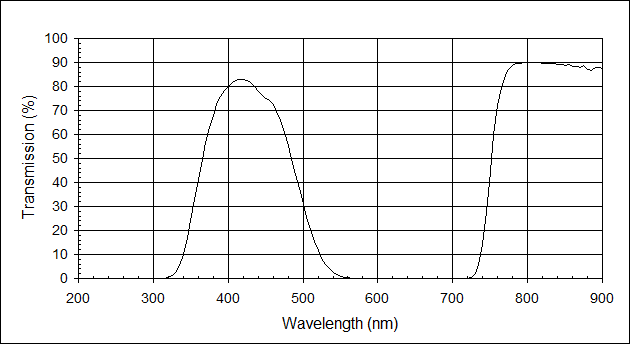

Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 79.91 670 0.00
205 0.00 440 77.88 675 0.00
210 0.00 445 76.56 680 0.00
215 0.00 450 75.16 685 0.00
220 0.00 455 74.14 690 0.00
225 0.00 460 72.35 695 0.00
230 0.00 465 69.67 700 0.00
235 0.00 470 65.72 705 0.00
240 0.00 475 60.88 710 0.00
245 0.00 480 55.38 715 0.01
250 0.00 485 49.48 720 0.10
255 0.00 490 43.52 725 0.56
260 0.00 495 37.39 730 2.12
265 0.00 500 31.19 735 5.97
270 0.00 505 25.51 740 13.98
275 0.00 510 20.36 745 27.52
280 0.00 515 15.58 750 44.50
285 0.00 520 11.63 755 60.15
290 0.00 525 8.29 760 71.97
295 0.00 530 5.77 765 79.70
300 0.00 535 4.01 770 84.45
305 0.01 540 2.62 775 87.11
310 0.02 545 1.57 780 88.63
315 0.10 550 0.87 785 89.41
320 0.36 555 0.45 790 89.76
325 1.09 560 0.22 795 89.99
330 2.67 565 0.11 800 89.86
335 5.56 570 0.05 805 90.00
340 10.14 575 0.03 810 90.01
345 16.49 580 0.01 815 89.95
350 24.24 585 0.00 820 89.72
355 32.74 590 0.00 825 89.72
360 41.24 595 0.00 830 89.49
365 49.45 600 0.00 835 89.43
370 56.61 605 0.00 840 89.18
375 62.72 610 0.00 845 89.15
380 67.95 615 0.00 850 88.85
385 72.62 620 0.00 855 89.03
390 75.98 625 0.00 860 88.29
395 78.19 630 0.00 865 88.15
400 79.85 635 0.00 870 88.06
405 81.30 640 0.00 875 88.76
410 82.42 645 0.00 880 86.98
415 82.78 650 0.00 885 86.84
420 82.97 655 0.00 890 87.72
425 82.57 660 0.00 895 87.81
430 81.52 665 0.00 900 87.54
