Kopp 5071

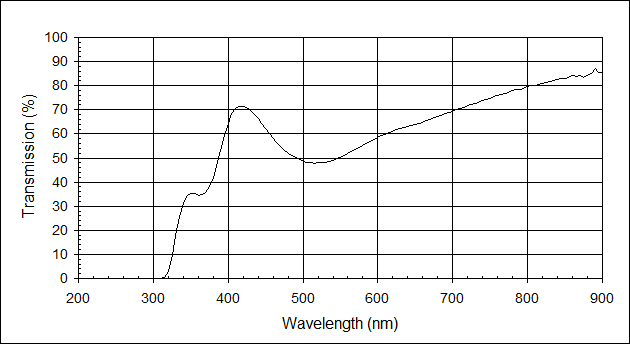

Note: Graph and tabular data at 3.20 mm
Filter Specifications
Transmission at 700 nm must be 70 ± 1.2%
Minimum transmission at 517 ± 5 nm
Transmission at 700 nm must be equal to transmission at 436 ± 6 nm
Physical Properties
Nominal Thickness Range 3.2 - 5.1 mm
Refractive Index nD = 1.59
Density 3.26 g/cm3
Thermal Linear Expansion 106E-7 /șC (30-300 șC)
Strain Temperature 400 șC
Annealing Temperature 439 șC
Deformation Temperature 620 șC


    Kopp 5071
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 68.25 670 66.13
205 0.00 440 66.45 675 66.75
210 0.00 445 64.50 680 67.27
215 0.01 450 62.40 685 67.78
220 0.00 455 60.26 690 68.34
225 0.01 460 58.29 695 68.95
230 0.01 465 56.62 700 69.48
235 0.01 470 54.84 705 70.07
240 0.01 475 53.22 710 70.67
245 0.01 480 51.90 715 71.12
250 0.01 485 50.84 720 71.65
255 0.01 490 50.03 725 72.21
260 0.01 495 49.28 730 72.71
265 0.01 500 48.69 735 73.22
270 0.01 505 48.32 740 73.79
275 0.00 510 48.01 745 74.29
280 0.01 515 47.89 750 74.78
285 0.01 520 47.94 755 75.32
290 0.01 525 48.09 760 75.84
295 0.01 530 48.32 765 76.30
300 0.01 535 48.67 770 76.79
305 0.01 540 49.14 775 77.31
310 0.02 545 49.72 780 77.82
315 0.41 550 50.38 785 78.23
320 3.03 555 51.09 790 78.62
325 9.35 560 51.88 795 78.96
330 17.73 565 52.68 800 79.48
335 25.59 570 53.59 805 79.88
340 31.13 575 54.50 810 80.17
345 34.32 580 55.36 815 80.66
350 35.33 585 56.07 820 80.98
355 35.09 590 56.84 825 81.41
360 34.55 595 57.59 830 81.90
365 34.73 600 58.46 835 82.11
370 35.66 605 59.16 840 82.62
375 38.03 610 59.89 845 82.88
380 41.57 615 60.54 850 83.04
385 46.76 620 61.13 855 83.41
390 53.02 625 61.64 860 84.09
395 59.14 630 62.11 865 83.90
400 64.51 635 62.51 870 84.25
405 68.31 640 63.02 875 83.48
410 70.60 645 63.46 880 84.25
415 71.53 650 63.96 885 85.00
420 71.24 655 64.36 890 87.07
425 70.80 660 64.91 895 85.34
430 69.77 665 65.48 900 85.30
