Kopp 5433

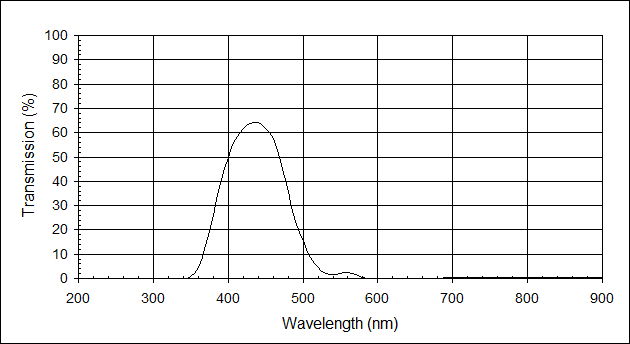

Note: Graph and tabular data at 5.10 mm
Filter Specifications
	Transmission at 499 nm must be 15 ± 0.7%
	The difference between 15% and 60% transmission must be 42 ± 5 nm
	Transmission at 750 nm must be < 0.5%
Physical Properties
	Nominal Thickness Range					4.4 - 5.6 mm
	Refractive Index					nD = 1.54
	Density					2.85 g/cm3
	Thermal Linear Expansion					69E-7 /ºC (30-300 ºC)
	Strain Temperature					416 ºC
	Annealing Temperature					462 ºC
	Deformation Temperature					675 ºC
		Kopp 5433
	Wavelength	Transmission		Wavelength	Transmission		Wavelength	Transmission
	(nm)	(%)		(nm)	(%)		(nm)	(%)
	200	0.00		435	64.09		670	0.04
	205	0.00		440	64.03		675	0.06
	210	0.00		445	63.30		680	0.09
	215	0.00		450	61.93		685	0.15
	220	0.00		455	60.23		690	0.21
	225	0.00		460	57.67		695	0.28
	230	0.00		465	53.80		700	0.33
	235	0.00		470	48.40		705	0.37
	240	0.00		475	42.18		710	0.38
	245	0.00		480	35.76		715	0.38
	250	0.00		485	29.34		720	0.38
	255	0.00		490	23.63		725	0.36
	260	0.00		495	19.02		730	0.35
	265	0.00		500	15.48		735	0.33
	270	0.00		505	11.82		740	0.32
	275	0.00		510	8.63		745	0.30
	280	0.00		515	6.32		750	0.29
	285	0.00		520	4.46		755	0.28
	290	0.00		525	3.07		760	0.27
	295	0.00		530	2.18		765	0.26
	300	0.00		535	1.75		770	0.25
	305	0.00		540	1.62		775	0.25
	310	0.00		545	1.73		780	0.24
	315	0.00		550	2.08		785	0.23
	320	0.00		555	2.49		790	0.23
	325	0.00		560	2.54		795	0.23
	330	0.00		565	2.14		800	0.23
	335	0.00		570	1.48		805	0.23
	340	0.02		575	0.86		810	0.23
	345	0.12		580	0.42		815	0.24
	350	0.62		585	0.19		820	0.24
	355	1.88		590	0.10		825	0.25
	360	4.44		595	0.08		830	0.24
	365	8.47		600	0.07		835	0.25
	370	13.65		605	0.07		840	0.25
	375	19.47		610	0.07		845	0.26
	380	25.74		615	0.06		850	0.27
	385	32.63		620	0.06		855	0.27
	390	39.28		625	0.05		860	0.29
	395	45.10		630	0.04		865	0.29
	400	49.99		635	0.03		870	0.31
	405	53.99		640	0.02		875	0.33
	410	57.25		645	0.02		880	0.33
	415	59.74		650	0.02		885	0.32
	420	61.82		655	0.02		890	0.39
	425	63.11		660	0.02		895	0.34
	430	63.92		665	0.03		900	0.38
