Kopp 5543

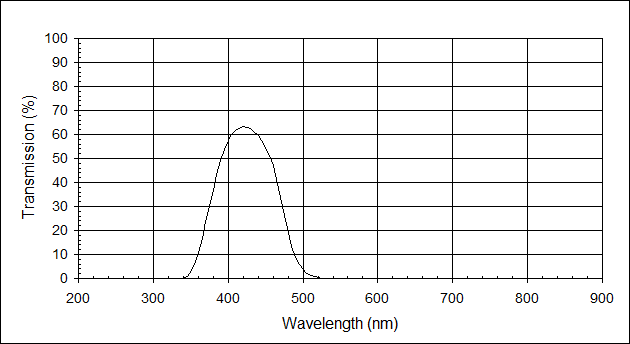

Note: Graph and tabular data at 4.90 mm
Filter Specifications
	Transmission at 483 nm must be 15 ± 0.7%
	The difference between 15% and 60% transmission must be 43 ± 5 nm
	Transmission at 750 nm must be < 1.0%
Physical Properties
	Nominal Thickness Range					4.4 - 5.6 mm
	Refractive Index					nD = 1.53
	Density					2.84 g/cm3
	Thermal Linear Expansion					71E-7 /ºC (30-300 ºC)
	Strain Temperature					417 ºC
	Annealing Temperature					459 ºC
	Deformation Temperature					673 ºC
		Kopp 5543
	Wavelength	Transmission		Wavelength	Transmission		Wavelength	Transmission
	(nm)	(%)		(nm)	(%)		(nm)	(%)
	200	0.00		435	61.01		670	0.00
	205	0.00		440	59.47		675	0.00
	210	0.00		445	57.44		680	0.00
	215	0.00		450	54.41		685	0.01
	220	0.00		455	51.20		690	0.02
	225	0.00		460	46.96		695	0.03
	230	0.00		465	41.25		700	0.05
	235	0.00		470	33.93		705	0.06
	240	0.00		475	26.27		710	0.07
	245	0.00		480	19.29		715	0.08
	250	0.00		485	13.23		720	0.08
	255	0.00		490	8.72		725	0.07
	260	0.00		495	5.77		730	0.07
	265	0.00		500	3.86		735	0.06
	270	0.00		505	2.27		740	0.06
	275	0.00		510	1.21		745	0.06
	280	0.00		515	0.63		750	0.05
	285	0.00		520	0.30		755	0.05
	290	0.00		525	0.13		760	0.05
	295	0.00		530	0.06		765	0.05
	300	0.00		535	0.04		770	0.05
	305	0.00		540	0.03		775	0.04
	310	0.00		545	0.03		780	0.04
	315	0.00		550	0.05		785	0.04
	320	0.00		555	0.08		790	0.04
	325	0.00		560	0.10		795	0.04
	330	0.00		565	0.08		800	0.04
	335	0.02		570	0.04		805	0.04
	340	0.15		575	0.02		810	0.04
	345	0.74		580	0.00		815	0.04
	350	2.48		585	0.00		820	0.04
	355	5.74		590	0.00		825	0.04
	360	10.67		595	0.00		830	0.04
	365	16.83		600	0.00		835	0.04
	370	23.55		605	0.00		840	0.05
	375	30.20		610	0.00		845	0.05
	380	36.73		615	0.00		850	0.05
	385	43.38		620	0.00		855	0.05
	390	49.24		625	0.00		860	0.05
	395	53.93		630	0.00		865	0.06
	400	57.33		635	0.00		870	0.06
	405	59.86		640	0.00		875	0.06
	410	61.57		645	0.00		880	0.06
	415	62.68		650	0.00		885	0.07
	420	63.29		655	0.00		890	0.07
	425	63.11		660	0.00		895	0.09
	430	62.34		665	0.00		900	0.06
