Kopp 5970

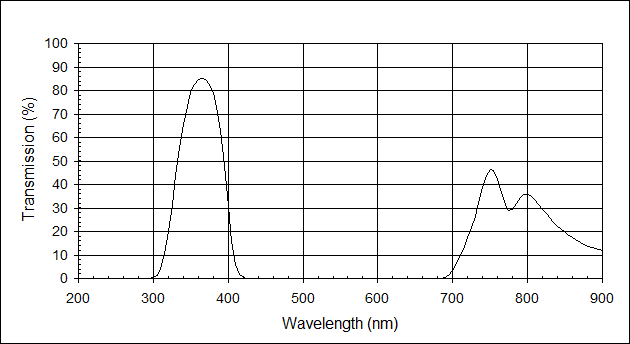

	Note: Graph and tabular data at 4.90 mm
	Filter Specifications
		Transmission must be > 80% at 365 nm
	Physical Properties
		Nominal Thickness Range					4.9 - 5.1 mm
		Refractive Index					nD = 1.55
		Density					2.94 g/cm3
		Thermal Linear Expansion					112E-7 /ºC (30-300 ºC)
		Strain Temperature					500 ºC
		Annealing Temperature					541 ºC
		Deformation Temperature					717 ºC
			Kopp 5970
		Wavelength	Transmission		Wavelength	Transmission		Wavelength	Transmission
		(nm)	(%)		(nm)	(%)		(nm)	(%)
		200	0.00		435	0.00		670	0.00
		205	0.00		440	0.00		675	0.00
		210	0.00		445	0.00		680	0.01
		215	0.00		450	0.00		685	0.09
		220	0.00		455	0.00		690	0.45
		225	0.00		460	0.00		695	1.50
		230	0.00		465	0.00		700	3.45
		235	0.00		470	0.00		705	6.24
		240	0.00		475	0.00		710	9.67
		245	0.00		480	0.00		715	13.51
		250	0.00		485	0.00		720	17.52
		255	0.00		490	0.00		725	21.53
		260	0.00		495	0.00		730	26.25
		265	0.00		500	0.00		735	32.22
		270	0.00		505	0.01		740	38.66
		275	0.00		510	0.02		745	43.73
		280	0.00		515	0.03		750	46.36
		285	0.00		520	0.05		755	45.84
		290	0.00		525	0.07		760	42.16
		295	0.00		530	0.10		765	36.42
		300	0.23		535	0.00		770	31.33
		305	1.24		540	0.00		775	29.01
		310	4.30		545	0.00		780	29.52
		315	10.56		550	0.00		785	31.89
		320	19.96		555	0.00		790	34.38
		325	31.55		560	0.00		795	35.83
		330	43.81		565	0.00		800	35.79
		335	55.65		570	0.00		805	34.76
		340	65.59		575	0.00		810	33.30
		345	73.37		580	0.00		815	31.35
		350	79.22		585	0.00		820	29.45
		355	82.63		590	0.00		825	27.53
		360	84.61		595	0.00		830	25.64
		365	85.16		600	0.00		835	23.86
		370	84.51		605	0.00		840	22.27
		375	82.71		610	0.00		845	20.79
		380	79.17		615	0.00		850	19.47
		385	72.94		620	0.00		855	18.23
		390	63.06		625	0.00		860	17.38
		395	48.19		630	0.00		865	16.23
		400	30.82		635	0.00		870	15.33
		405	15.60		640	0.00		875	14.57
		410	5.96		645	0.00		880	13.79
		415	1.69		650	0.00		885	13.03
		420	0.37		655	0.00		890	12.71
		425	0.07		660	0.00		895	12.45
		430	0.01		665	0.00		900	11.92
