Kopp 7095

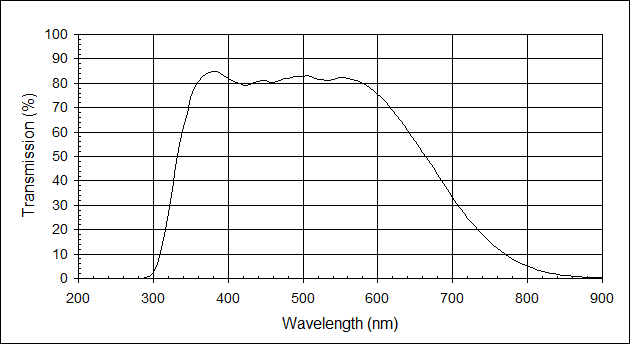

Note: Graph and tabular data at 2.00 mm
Filter Specifications
Transmission at 365 nm must be ³ 80%
Transmission at 500 nm must be ³ 80%
Transmission at 600 nm must be ³ 74%
Transmission at 700 nm must be £ 35%
Transmission at 800 nm must be £ 9%
Transmission at 900 nm must be £ 1%
Physical Properties
Nominal Thickness Range 2.0 mm
Refractive Index nD = 1.51
Density 2.50 g/cm3
Thermal Linear Expansion 57E-7 /ºC (30-300 ºC)
Strain Temperature 629 ºC
Annealing Temperature 643 ºC
Deformation Temperature 676 ºC


    Kopp 7095
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.00 435 80.33 670 47.18
205 0.00 440 80.70 675 44.90
210 0.00 445 81.02 680 42.43
215 0.00 450 81.08 685 40.07
220 0.00 455 80.50 690 37.69
225 0.00 460 80.32 695 35.33
230 0.00 465 80.67 700 33.03
235 0.00 470 81.28 705 30.84
240 0.00 475 81.83 710 28.72
245 0.00 480 82.14 715 26.69
250 0.00 485 82.50 720 24.77
255 0.00 490 82.91 725 22.94
260 0.00 495 82.91 730 21.14
265 0.00 500 82.95 735 19.48
270 0.00 505 83.01 740 17.85
275 0.00 510 82.63 745 16.32
280 0.00 515 82.01 750 14.88
285 0.04 520 81.60 755 13.50
290 0.21 525 81.38 760 12.22
295 0.81 530 81.13 765 11.01
300 2.41 535 81.27 770 9.90
305 5.59 540 81.42 775 8.88
310 10.64 545 81.95 780 7.93
315 17.85 550 82.25 785 7.05
320 26.80 555 82.32 790 6.24
325 36.44 560 81.96 795 5.54
330 46.07 565 81.66 800 4.91
335 55.05 570 81.20 805 4.31
340 62.27 575 80.56 810 3.80
345 67.64 580 79.83 815 3.30
350 73.99 585 78.99 820 2.91
355 78.12 590 77.91 825 2.51
360 80.73 595 76.67 830 2.19
365 82.59 600 75.44 835 1.89
370 83.74 605 74.02 840 1.62
375 84.45 610 72.35 845 1.42
380 84.80 615 70.61 850 1.22
385 84.86 620 68.89 855 1.05
390 84.07 625 66.80 860 0.90
395 82.83 630 64.80 865 0.74
400 81.82 635 62.64 870 0.67
405 81.08 640 60.52 875 0.56
410 80.45 645 58.27 880 0.49
415 79.97 650 56.08 885 0.43
420 79.25 655 53.85 890 0.37
425 79.14 660 51.68 895 0.31
430 79.68 665 49.50 900 0.28
