Kopp 7510

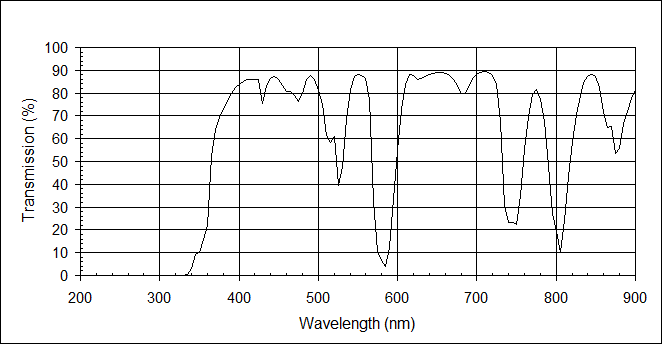

Note: Graph and tabular data at 4.00 mm
( Rose Glow )
Thickness x y T (%) u' v'
4.00 0.4385 0.3801 60.64 0.2624 0.5118
Physical Properties
Nominal Thickness Range 4.0 mm
Refractive Index nD = 1.514
Density 2.52 g/cm3
Thermal Linear Expansion 45E-7 /ºC (30-300 ºC)
Strain Temperature 506 ºC
Transition Temperature 548 ºC
Annealing Temperature 567 ºC
Deformation Temperature 615 ºC


    Kopp 7510
Wavelength Transmission Wavelength Transmission Wavelength Transmission
(nm) (%) (nm) (%) (nm) (%)
200 0.01 435 83.32 670 85.96
205 0.00 440 86.59 675 83.23
210 0.00 445 87.17 680 79.95
215 0.01 450 86.17 685 79.88
220 0.01 455 83.40 690 83.35
225 0.01 460 80.60 695 86.62
230 0.01 465 80.59 700 88.37
235 0.01 470 78.92 705 89.18
240 0.01 475 76.45 710 89.43
245 0.01 480 80.04 715 88.99
250 0.02 485 85.86 720 87.74
255 0.02 490 87.76 725 83.67
260 0.01 495 85.79 730 67.51
265 0.01 500 81.25 735 30.57
270 0.01 505 74.92 740 23.33
275 0.01 510 61.50 745 23.44
280 0.01 515 58.42 750 22.21
285 0.01 520 60.79 755 35.22
290 0.00 525 39.43 760 55.16
295 0.00 530 47.88 765 69.84
300 0.00 535 68.30 770 79.29
305 0.00 540 81.62 775 81.46
310 0.01 545 87.19 780 77.13
315 0.00 550 88.02 785 67.36
320 0.00 555 87.69 790 48.08
325 0.01 560 86.22 795 27.31
330 0.06 565 77.35 800 19.13
335 0.62 570 32.81 805 10.08
340 3.24 575 10.73 810 24.05
345 9.38 580 6.65 815 43.24
350 9.92 585 4.12 820 58.93
355 15.62 590 12.22 825 70.72
360 21.93 595 33.25 830 78.95
365 52.06 600 54.85 835 84.69
370 64.20 605 72.99 840 87.45
375 69.39 610 83.72 845 87.99
380 72.88 615 88.16 850 87.10
385 76.60 620 87.52 855 82.26
390 80.00 625 86.09 860 71.75
395 82.55 630 86.30 865 64.82
400 83.94 635 87.45 870 65.14
405 85.06 640 88.00 875 53.66
410 85.88 645 88.55 880 55.88
415 85.97 650 88.86 885 66.51
420 85.85 655 88.86 890 71.82
425 85.99 660 88.63 895 77.47
430 75.57 665 87.92 900 81.63
